Why the world relies on a Chinese “perspective”

Virtually every architect, engineer, and designer in the world today relies on axonometry, a projection system that was first used in China approximately 1,000 years ago. Axonometry is the Chinese alternative to European linear perspective and was used by both Chinese artists and architects. Yet, few books on art history mention the origin of axonometry and what it can reveal about the Chinese worldview.

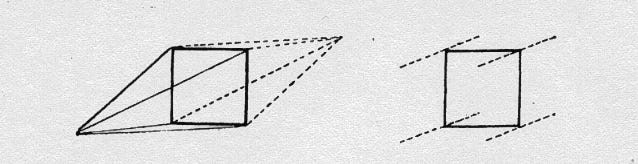

Modernist El Lissitzky was the first Western artist to graphically depict the difference between linear perspective and an axonometric projection.

The projection of three-dimensional space on the two-dimensional picture planes was an elusive goal throughout the world. All early art was two-dimensional. Artists lacked a graphic tool to depict 3D space on the 2D picture plane.

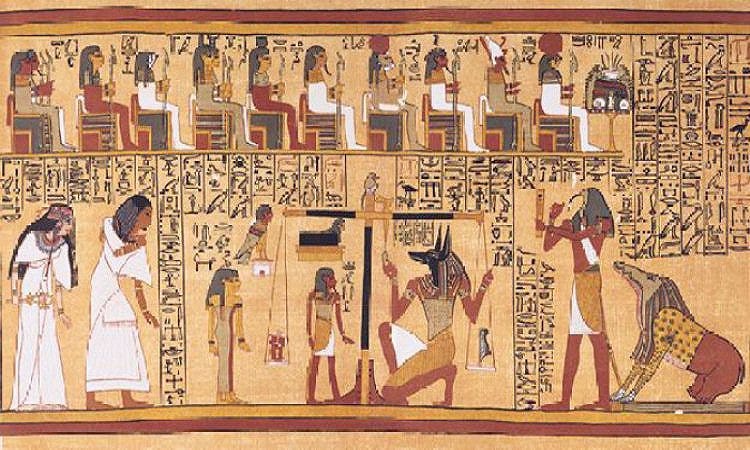

Ancient art was two-dimensional. Egyptian artists sometimes resorted to “composite” images to incorporate multiple views in one image.

About 2500 years ago, Greek artists “opened the door” to linear perspective when they depicted man-made objects that seemed to recede from the picture plane. The overall pictorial space was not yet coherent, but the open door suggested depth on the 2D surface.

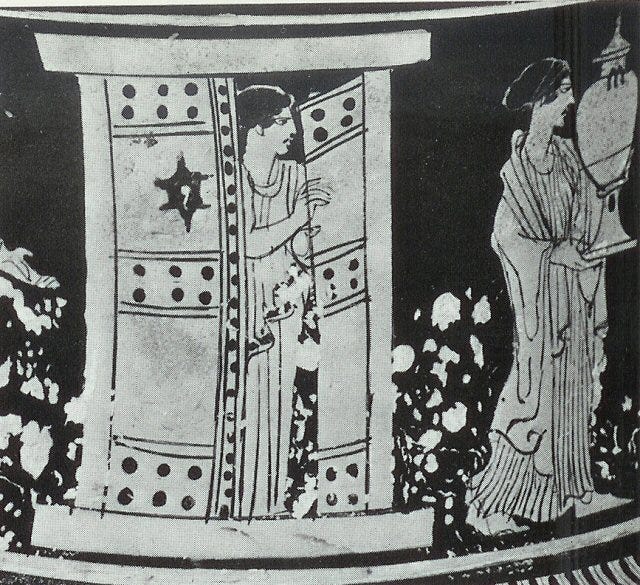

Early Greek attempt to depict a sense of depth on the picture plane.

More than a thousand years later, Italian Renaissance artists took the next step by inventing the concept of the vanishing point. The lines of projection converge at an imaginary point on the horizon. The vanishing point enabled artists to depict a coherent pictorial space on the 2D picture plane. Linear or scientific perspective, together with clair-obscure, formed the basis of Europe’s pictorial language until the 19th century.

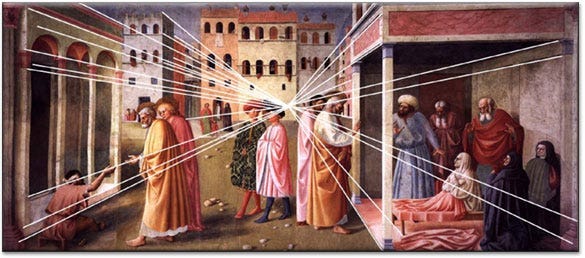

Illustration of the basic principle of linear perspective based on the vanishing point.

A Chinese perspective

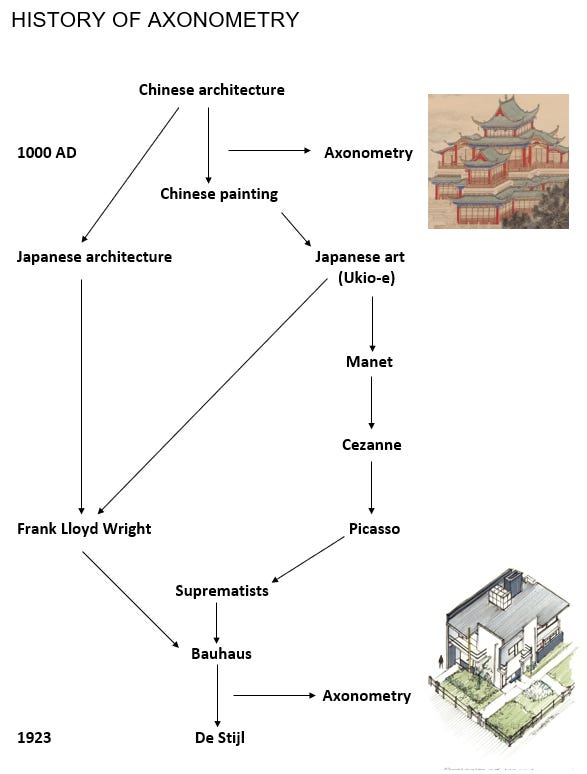

Approximately 2,000 years ago, the Chinese developed dengjiao toushi, a graphic tool that was probably invented by Chinese architects. It came to be known in the West as axonometry.

Unlike linear perspective, axonometry is not based on optics. It has no vanishing point. Pillars and beams remain strictly parallel, unaffected by optical distortion. The size and geometry of all man-made objects remain constant, regardless of the position of the viewer.

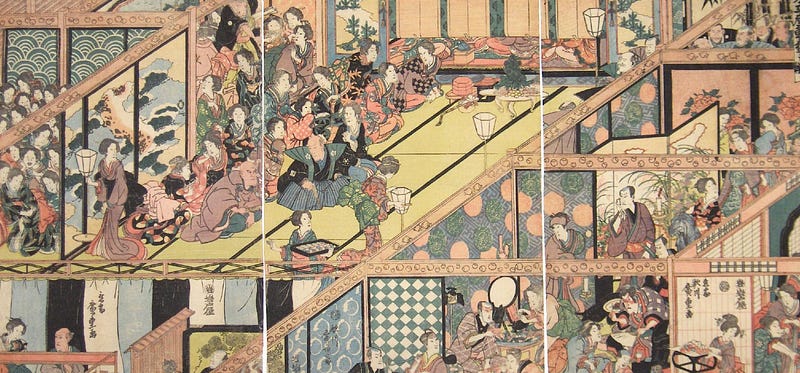

The Japanese, who began to adopt Chinese culture in the 8th century, became experts in using axonometry, not just as a method for depicting space but also as a tool for composition.

Space and time

Axonometry was crucial in the development of the Chinese hand scroll painting, an art form that art historian George Rowley referred to as “the supreme creation of Chinese genius.” Classic hand scroll paintings were up to ten meters in length. They are viewed by unrolling them from right to left in equal segments of about 50 cm. The painting takes the viewer through a visual story in space and time.

A scroll may depict life along a river. We unroll the opening sequence of the scroll and see people boarding a boat on a river. As we unroll the scroll further from right to left, we see the boat cross a lake, navigate rapids in the river, stop at a small harbor, and lastly arrive at its destination at the seashore. We have traveled through the landscape (space) in the course of the day (time).

Importantly, the scroll is not a sequence of separate scenes. It is a continuous, seamless image. This explains the importance of axonometry. When a building comes into view, it is depicted in axonometric projection. Linear perspective, which assumes a fixed position of the viewer, could not be used in the pictorial scroll format. With axonometry, which lacks a vanishing point, the focus is everywhere and nowhere.

Video of a Chinese hand scroll as a synthesis of space and time

Introduction to Europe

Jesuit missionaries based in China brought illustrations of axonometry back to Europe in the 17th century. The exotic graphic device was initially used for diamond cutting, ballistic measurements, and other technical measurements. Its wider acceptance came in the 19th century, when English scientist William Farish, using Euclidean geometry, developed isometry. It gave axonometry a mathematical foundation.

Farish published a paper entitled "On Isometrical Perspective," in which he made it clear that the Industrial Revolution required technical working drawings free of optical distortion.

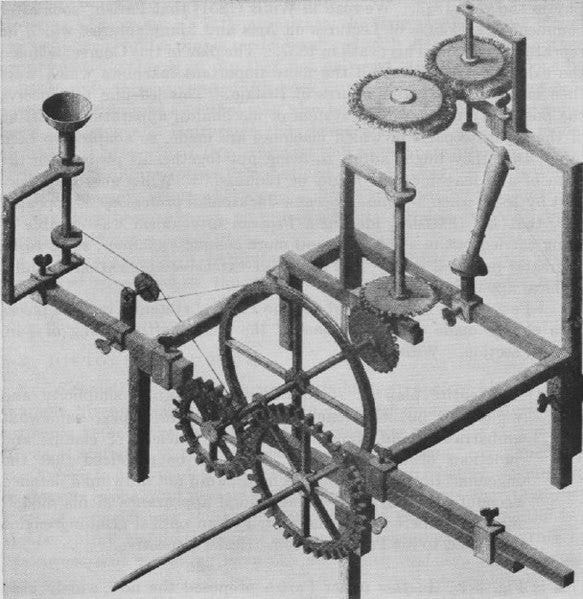

The optical grinding machine depicted is an isometric projection. Isometry means of equal measure: The same scale is used for height, width, and depth.

Modernist embrace

The popular acceptance of axonometry came in the 1920s, when modernist artists and architects discovered its value in depicting modern, industrial architecture. De Stijl architects Theo van Doesburg and Cornelis van Eesteren caused a sensation in Paris when they presented axonometric renderings of their designs. Today, axonometry is utilized by architects, engineers, and designers worldwide.

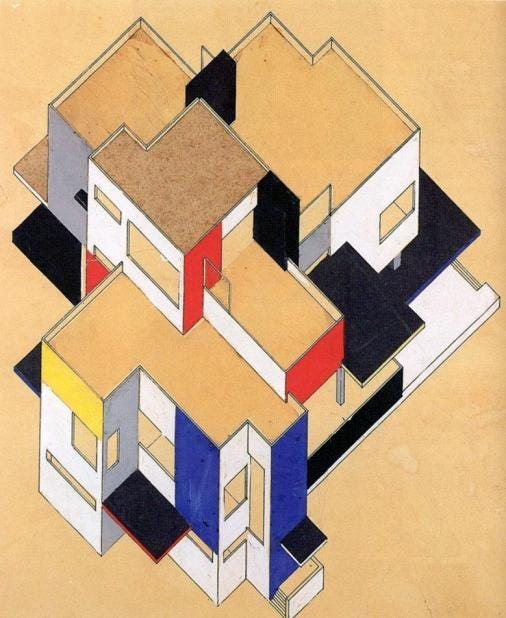

De Stijl’s example of modern architecture was built with machine-made materials.

Axonometry was also crucial in the development of Computer-Aided Design and subsequent forms of visual computing. Our modern world is virtually constructed in axonometry. However, its Chinese origin and the worldview that gave rise to axonometry have been largely overlooked.

Axonometry is the reflection of the ancient Chinese thought that space and time are intrinsically related — in modern terminology, a space-time continuum. The Chinese notion of space-time was likely formulated by ancient Chinese Feng Shui masters. Historian Feng Yu-Ian explained that in ancient times, the Chinese referred to Yu, which means ‘space-universe’. They also spoke of Zhou, which means ‘time-universe’. A little more than 2000 years ago, these words began to appear together: Yu-Zhou.

Yu-Zhou represents the yin-yang universe. Yu is yin, Zhou is yang. Feng Yu-Ian noted that the scholar Lu Xiang-shan was reading an ancient book and came upon the characters Yu and Zhou. The explanation said, ‘What comprises the four points of the compass together with what is above and below: this is called Yu. What comprises past, present, and future: this is called Zhou.’

Yu-Zhou and axonometry appeared to have been conceived at roughly the same time. One can be used to illustrate the other.

Illustration of the Chinese conception of space-time.

Axonometry and its geometric cousin, isometry, were an invaluable addition to linear perspective. American author and architect Claude Bragdon, author of The Frozen Fountain, offered what must be the best description of its aesthetic qualities. He wrote:

‘Isometric perspective, less faithful to appearance, is more faithful to fact; it shows things nearly as they are known to the mind. Parallel lines are really parallel; there is no far and no near, the size of everything remains constant because all things are represented as being the same distance away and the eye of the spectator everywhere at once. When we imagine a thing, or strive to visualize it in the mind or memory, we do it in this way, without the distortion of ordinary perspective. Isometric perspective is therefore more intellectual, more archetypal, it more truly renders the mental image — the thing seen by the mind’s eye.’
